ERGA Long reads-only Assembly+QC Hifiasm v2505 (WF2)
View on GitHub
Download RO-Crate
Run on GalaxyThe workflow takes a long reads collection (HiFi, or ONT also possible now), and max coverage depth (calculated from WF1) to run Hifiasm in solo mode. It produces a Pri/Alt assembly, Bandage plots, and runs all the QC analysis (gfastats, BUSCO, and Merqury).
Inputs
| ID | Name | Description | Type |
|---|---|---|---|
| (Trimmed) Long Reads Collection | #main/(Trimmed) Long Reads Collection | Collection of Long reads in fastq format |
|
| Estimated genome size | #main/Estimated genome size | Select the est_genome_size result obtained during profiling |
|
| Hifiasm level of dups purging | #main/Hifiasm level of dups purging | 0 to disable, 1 to only purge contained haplotigs, 2 to purge all types of haplotigs, 3 to purge all types of haplotigs in the most aggressive way. In default, 3 for non-trio assembly, 0 for trio-binning assembly. For trio-binning assembly, only level 0 and level 1 are allowed. |
|
| Meryl Database | #main/Meryl Database | Select the meryl_db result obtained during profiling |
|
| The Long Reads are PacBio HiFi | #main/The Long Reads are PacBio HiFi | If your long reads are HiFi, leave it 'yes' |
|
| The Long reads are ONT | #main/The Long reads are ONT | If your long reads are ONT, switch to 'yes'. IMPORTANT: Remember to also switch HiFi to 'no' |
|
| lineage | #main/lineage | lineage for BUSCO, e.g.: arthropoda_odb10, vertebrata_odb10, mammalia_odb10, aves_odb10, tetrapoda_odb10 ... |
|
| max depth | #main/max depth | Select the max_depth result obtained during profiling |
|

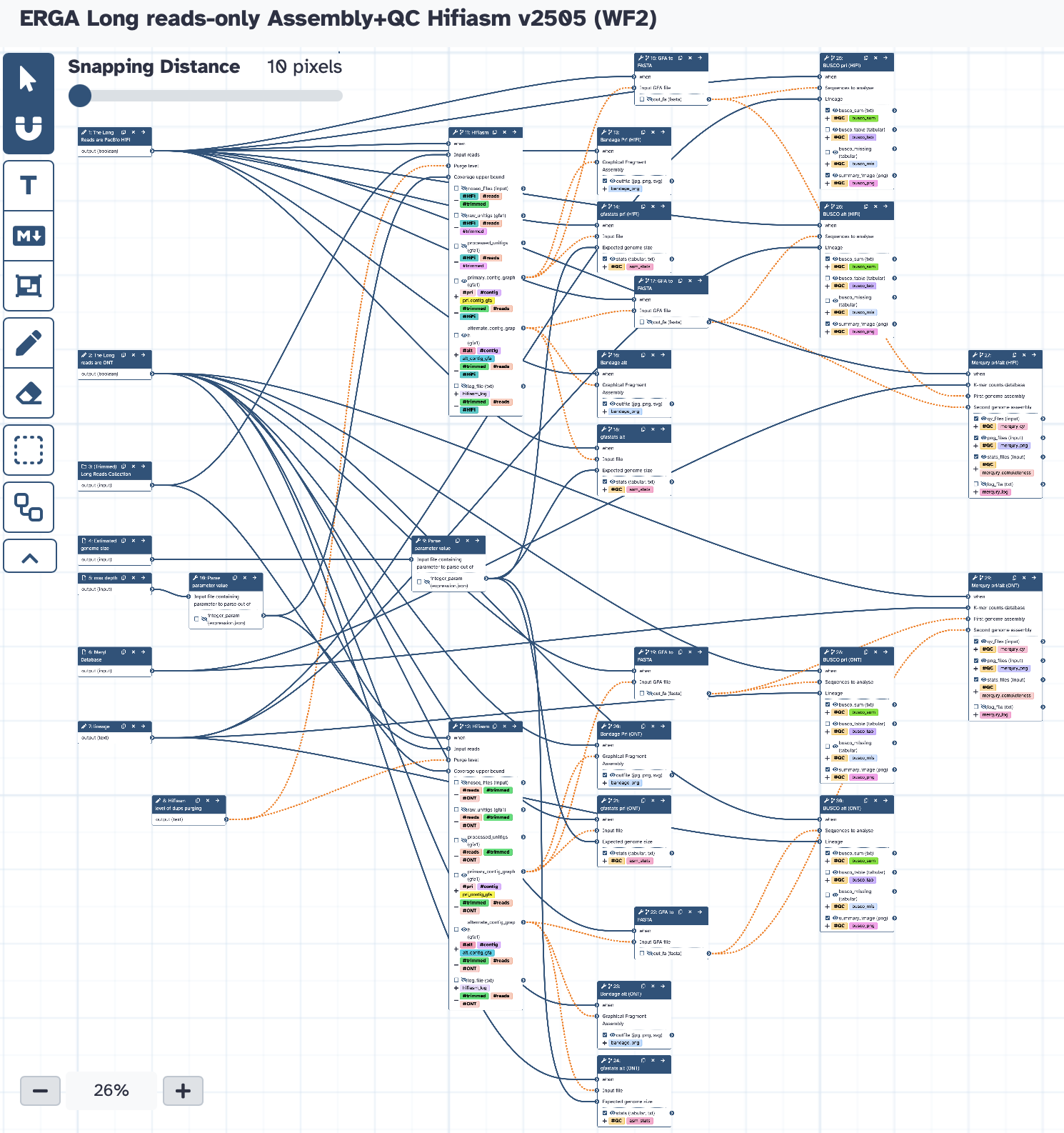

Steps
| ID | Name | Description |
|---|---|---|
| 8 | Parse parameter value | param_value_from_file |
| 9 | Parse parameter value | param_value_from_file |
| 10 | Hifiasm | toolshed.g2.bx.psu.edu/repos/bgruening/hifiasm/hifiasm/0.25.0+galaxy0 |
| 11 | Hifiasm | toolshed.g2.bx.psu.edu/repos/bgruening/hifiasm/hifiasm/0.25.0+galaxy0 |
| 12 | Bandage Pri (HiFi) | toolshed.g2.bx.psu.edu/repos/iuc/bandage/bandage_image/2022.09+galaxy4 |
| 13 | gfastats pri (HiFi) | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.11+galaxy0 |
| 14 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
| 15 | Bandage alt | toolshed.g2.bx.psu.edu/repos/iuc/bandage/bandage_image/2022.09+galaxy4 |
| 16 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
| 17 | gfastats alt | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.11+galaxy0 |
| 18 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
| 19 | Bandage Pri (ONT) | toolshed.g2.bx.psu.edu/repos/iuc/bandage/bandage_image/2022.09+galaxy4 |
| 20 | gfastats pri (ONT) | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.11+galaxy0 |
| 21 | GFA to FASTA | toolshed.g2.bx.psu.edu/repos/iuc/gfa_to_fa/gfa_to_fa/0.1.2 |
| 22 | Bandage alt (ONT) | toolshed.g2.bx.psu.edu/repos/iuc/bandage/bandage_image/2022.09+galaxy4 |
| 23 | gfastats alt (ONT) | toolshed.g2.bx.psu.edu/repos/bgruening/gfastats/gfastats/1.3.11+galaxy0 |
| 24 | BUSCO pri (HiFi) | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.8.0+galaxy1 |
| 25 | BUSCO alt (HiFi) | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.8.0+galaxy1 |
| 26 | Merqury pri/alt (HiFi) | toolshed.g2.bx.psu.edu/repos/iuc/merqury/merqury/1.3+galaxy4 |
| 27 | BUSCO pri (ONT) | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.8.0+galaxy1 |
| 28 | Merqury pri/alt (ONT) | toolshed.g2.bx.psu.edu/repos/iuc/merqury/merqury/1.3+galaxy4 |
| 29 | BUSCO alt (ONT) | toolshed.g2.bx.psu.edu/repos/iuc/busco/busco/5.8.0+galaxy1 |
Outputs
| ID | Name | Description | Type |
|---|---|---|---|
| _anonymous_output_1 | #main/_anonymous_output_1 | n/a |
|
| _anonymous_output_10 | #main/_anonymous_output_10 | n/a |
|
| _anonymous_output_11 | #main/_anonymous_output_11 | n/a |
|
| _anonymous_output_12 | #main/_anonymous_output_12 | n/a |
|
| _anonymous_output_13 | #main/_anonymous_output_13 | n/a |
|
| _anonymous_output_14 | #main/_anonymous_output_14 | n/a |
|
| _anonymous_output_15 | #main/_anonymous_output_15 | n/a |
|
| _anonymous_output_16 | #main/_anonymous_output_16 | n/a |
|
| _anonymous_output_17 | #main/_anonymous_output_17 | n/a |
|
| _anonymous_output_18 | #main/_anonymous_output_18 | n/a |
|
| _anonymous_output_19 | #main/_anonymous_output_19 | n/a |
|
| _anonymous_output_2 | #main/_anonymous_output_2 | n/a |
|
| _anonymous_output_20 | #main/_anonymous_output_20 | n/a |
|
| _anonymous_output_21 | #main/_anonymous_output_21 | n/a |
|
| _anonymous_output_22 | #main/_anonymous_output_22 | n/a |
|
| _anonymous_output_3 | #main/_anonymous_output_3 | n/a |
|
| _anonymous_output_4 | #main/_anonymous_output_4 | n/a |
|
| _anonymous_output_5 | #main/_anonymous_output_5 | n/a |
|
| _anonymous_output_6 | #main/_anonymous_output_6 | n/a |
|
| _anonymous_output_7 | #main/_anonymous_output_7 | n/a |
|
| _anonymous_output_8 | #main/_anonymous_output_8 | n/a |
|
| _anonymous_output_9 | #main/_anonymous_output_9 | n/a |
|
